Acratech Panoramic Head - Standard Clamp 1165

click to enlarge

Buy Now   £ 505

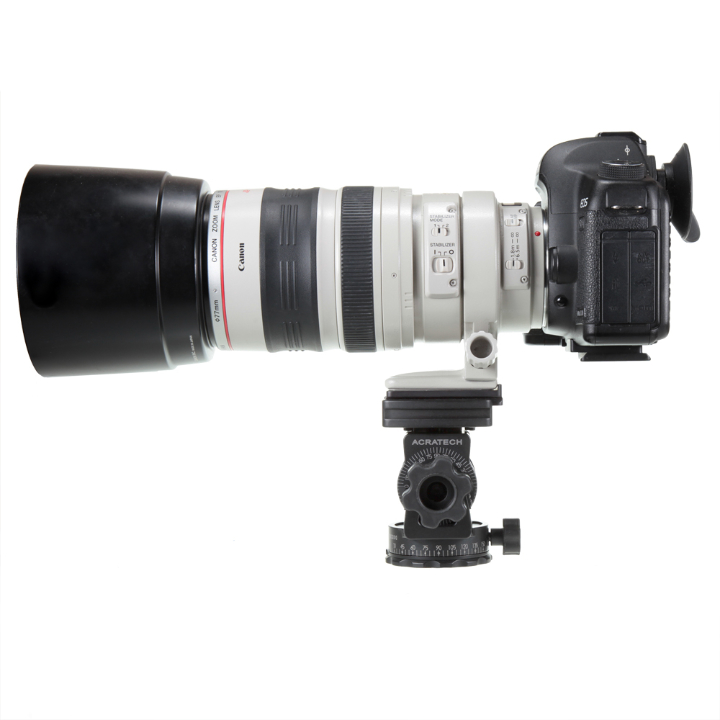

The Acratech Panoramic Head is designed as a multi-row panoramic head and it also works well as a long lens head.

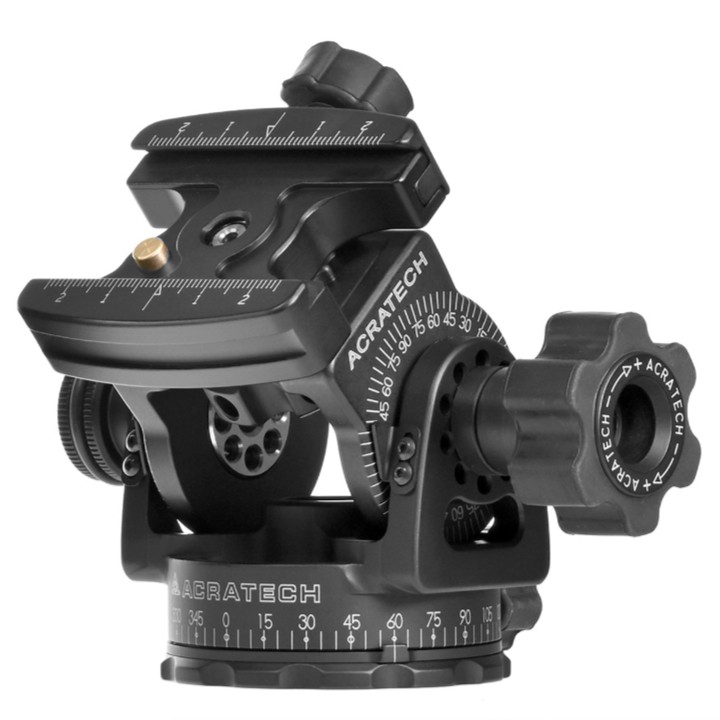

The large degree scale on the tilt axis and the adjustable zero pointer on the pan axis make multi-row panoramics very quick and easy.
The indexable quick release rotates in 90˚ degree increments so you can attach a camera body or a long lens with a tripod collar directly to the head.
Many photographers use the Panoramic Head with the levelling base, ‘L’ Bracket and Nodal Rail.

Panoramic Head Features :

• Designed to work as a multi-row panoramic head and as a long lens head.
• Will solidly support 600mm f4.0 lenses.
• Eliminates the need to carry a large, heavy gimbal head.
• Provides easy, smooth balance for long lenses.
• Weighs less than 1 lb (.45kg) with quick release clamp.
• Large 18mm (.708”) bullseye level
• Fully adjustable tension control.
• Precision C.N.C. machined.
• Compatible with Kirk, Arca, R.R.S., and many other QR plates.
• Beautiful satin black anodised finish.
• Fits all standard tripods (1/4-20 and 3/8-16 threads).
• Engraved degree markings.
• Solid precision feel.
• Made in U.S.A.
• All knobs are secured so they cannot vibrate loose and fall off.
• Indexable quick release clamp can be rotated in 90 degree increments.
